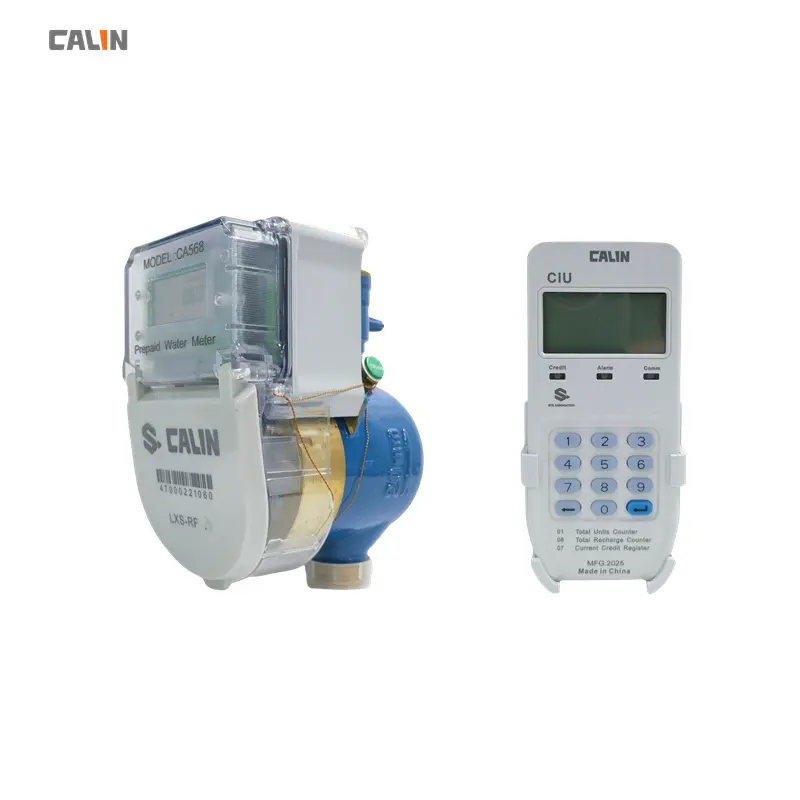

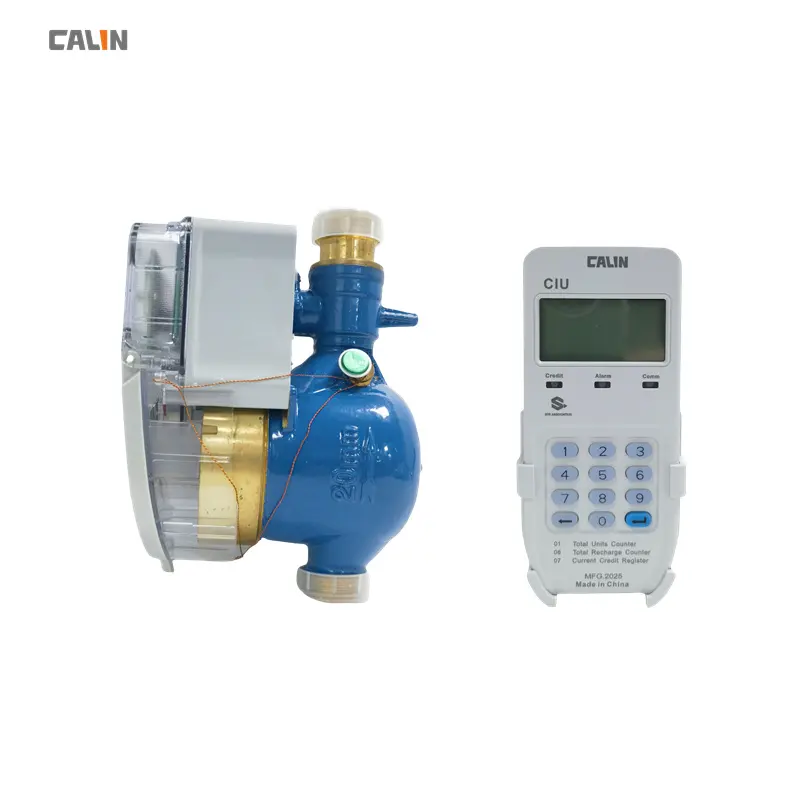

Main Features Meter Type: Rotary vane type, with dry or wet type available Shell Material: Copper shell Communication Modes: LoRa, RF, LoRaWAN communication options available Size Options: DN15, DN20, DN25 available Ratio: R160 Keypad Situation: No keypad on the meter Optional Component: Comes with a 配套 CIU (Customer Interface Unit) Certifications: MID and STS certified   This split – type water meter is designed to accurately measure water consumption. The availability of different communication modes enables seamless connection to smart water management systems. The option between dry and wet types, along with the various size choices, caters to different user needs. The copper shell provides durability, and the MID and STS certifications ensure compliance with relevant international standards. The split – type design, combined with the provided CIU, offers convenience in operation and management.

Nominal size	DN	mm	In-line
			15	20
Maximum flow rate	Q4	m³/h	3.125	5.0
Ratio“R”	Q3/Q1	m³/h	160	160
Permanent l flow rate	Q3		2.5	4.0
Transitional flow rate	Q2	1/h	25	40
Minimum flow rate	Q1		15.625	25
Maximum working pressure		Bar	25
Maximum pressure loss as complete unit including the shut off valve and piping
Maximum working temperature		℃	50
Maximum reading		m³	99999
Maximum Permissible Error(MPE)		%	Q1≦Q≦Q2: MPE = ± 5% Q2≦Q≦Q4: MPE = ± 2%
