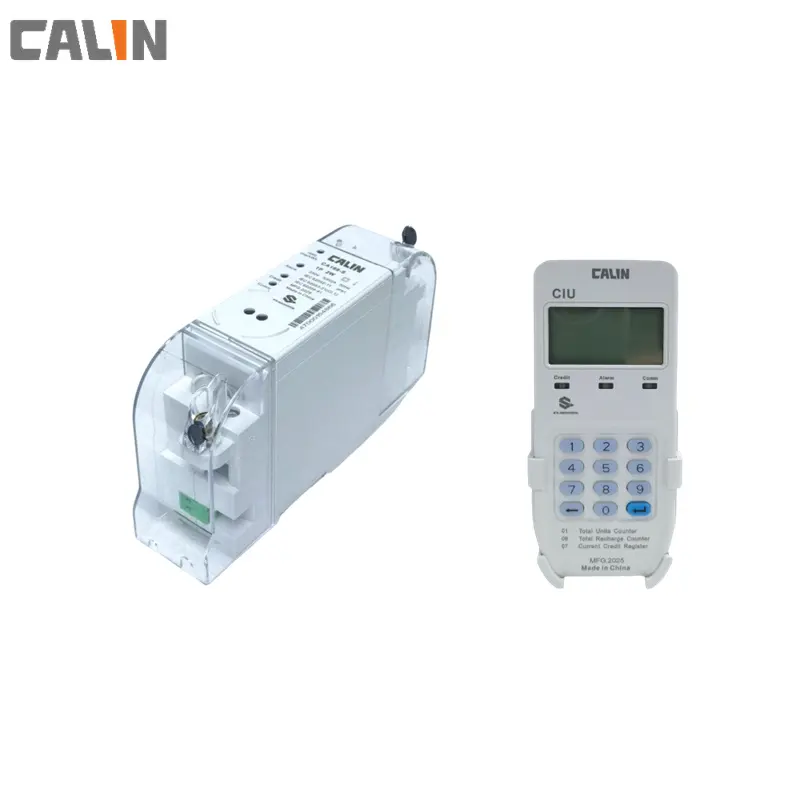

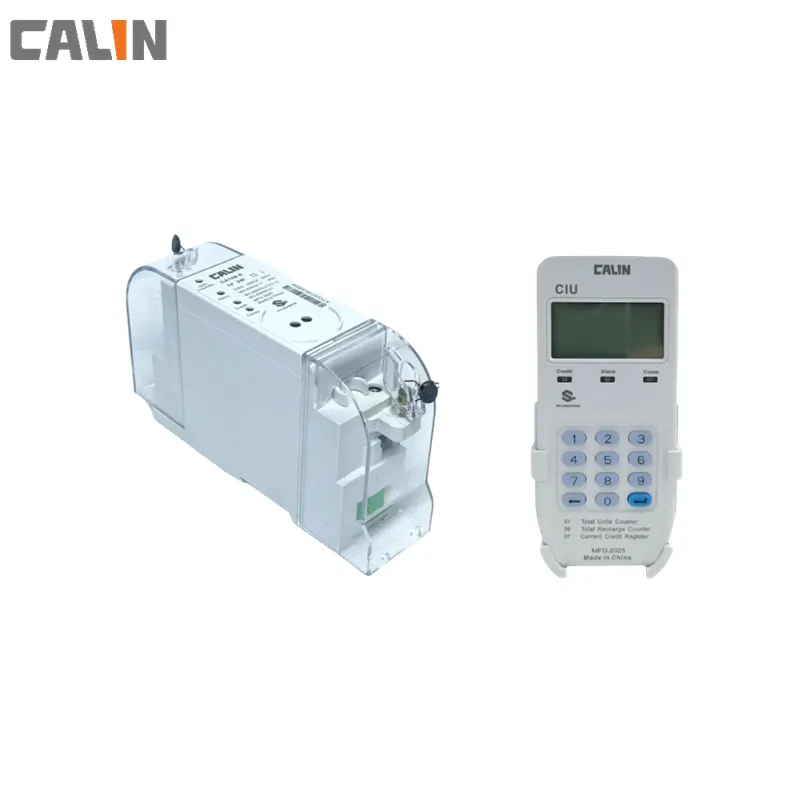

Main Features Rated Parameters: 230V, 5(60)A, 50HZ, Class 1.0 accuracy Communication Modes: M – bus, PLC, LORA, RF Interface: Equipped with RS485 Optional Component: CIU available Anti – Theft Feature: Anti – electricity – stealing function Wiring Design: Up – in and down – out wiring layout Certifications: DLMS and STS certified Split Configuration (if applicable) Since the CIU is optional, if there is a split configuration, the Metering & Control Unit (MCU) and CIU could potentially be linked through the available communication methods (M – bus, PLC, RF). The CIU could be installed within the consumer’s premises for user – friendly interaction, while the MCU could be placed in a meter cabinet at a suitable location away from the consumer for better management and protection. However, details would be subject to specific requests.

Electrical parameters:
Voltage
Nominal voltage Un	220/230/240V
Limited voltage	50%~130%Un
Frequency
Nominal frequency fn	50-60Hz
tolerance	5%
Current
Basic current(Ib)	5A
Maximum current(Imax)	60A (100A optional)
Starting current(Ist)	20mA
Active energy constant	1000imp/kWh
Measurement Accuracy
Active energy to IEC62053-21	Class1.0
Burden
Voltage circuit	<2W  <8VA
Current circuit	<1VA
Temperature range
Operation meter	-25℃ to+70℃
Storage	-40℃ to+85℃
Insulation
Insulation level		4kV rms 1min
Voltage impulse withstand		8kV 1.2/50 μs
Insulation System Classification		Protective Class II
Electro Magnetic Compatibility
Electrostatic discharges
Contact discharge		8kV
Air discharge		16kV
Electromagnetic RF fields
27MHz to 500MHz typical		10V/m
100kHz to 1GHz typical		30V/m
Fast transient burst test		4kV
Mechanical requirements
Meter shell Protection Rate		IP54
Insulation System Classification		Protective Class II
Maximum cable size		8 mm
